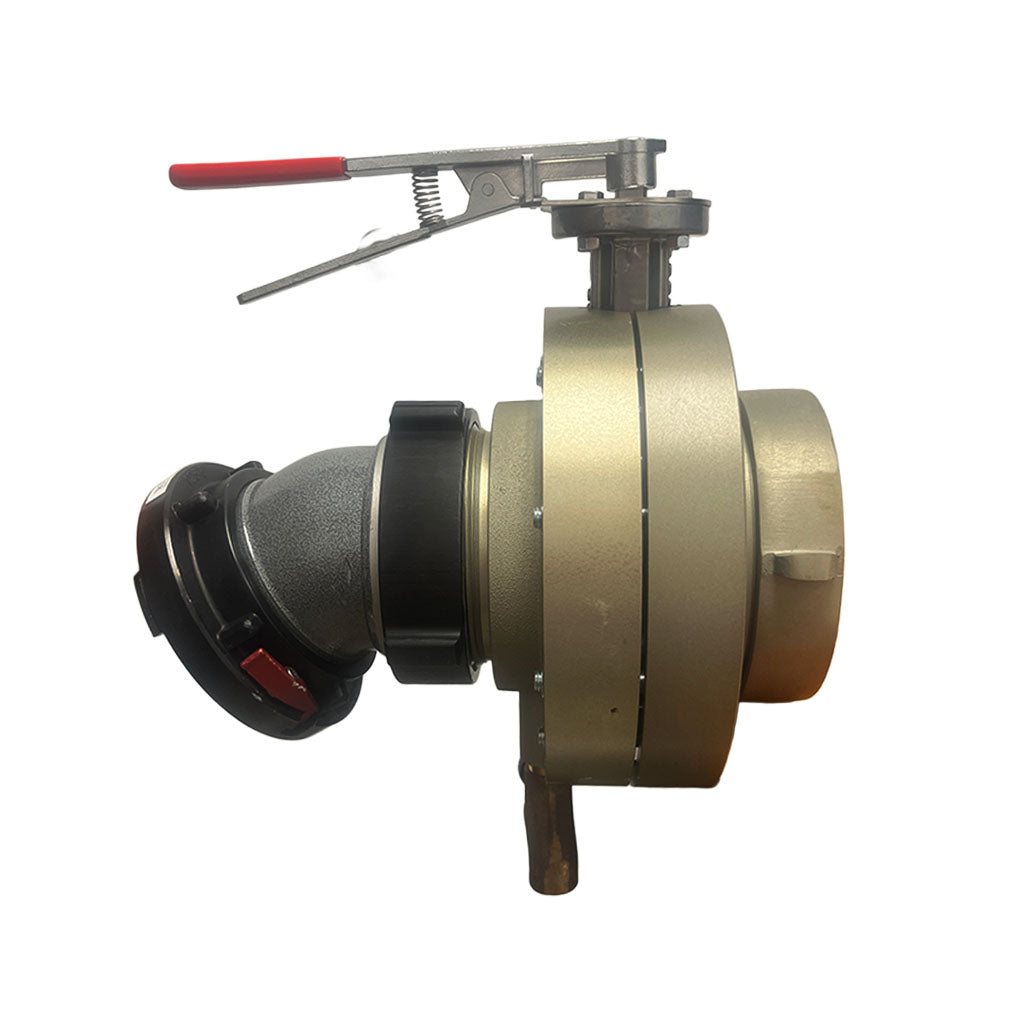

BV-78 Storz butterfly valve, 30° elbow, lever handle

Butterfly valve features: • Lightweight aluminum flanges with hardcoat finish. • Hose threads furnished with rocker lug, aluminum swivel. • NPT threaded flanges do not swivel. • 5″ or 6″ aluminum valve body with stainless steel stem, EPDM seat, bubble-tight shut-off up to 200 psi, and vacuum rating of 29.9″ mercury; Valves have tested up to five times the pressure rating without bursting. • Available with lever handle or speed handwheel gear operator. • Furnished with ¾” push-pull drain valve. • Available with screen insert (male hose thread end only). • Valve should be un-capped, opened, and allowed to dry completely after each use. Not recommended for use in a continuously wet application. The gear operator handwheel must be mounted on the right or left side of the valve body for the valve disk open-closed indicator to show the correct position of the valve disk. If the gearbox is mounted so that the handwheel is in front of the valve, the open-closed indicator will not indicate the correct position of the valve disk. An optional valve shaft is available to correct this problem.

Manufactured by South Park. Ships direct from the manufacturer. Need a configuration not listed? Contact Irons and Ash Services for a quote.
